Case Study: Combining PRP, HA and Succinic Acid

By Dr Daniel L Sister / 13 Jun 2017

Dr Daniel Sister describes the benefits of combining platelet-rich plasma with hyaluronic acid and succinic acid to treat the signs of ageing, and presents a clinical case study of successful results

As aesthetic practitioners, we now have a sound understanding of how the face ages, as well as many adequate treatment options at our disposal. However we are still searching for ways in which to further improve skin quality and correct skin damage.

In order to continue developing treatment options, I decided to conduct a trial with the objective of evaluating the benefits of mixing three ingredients, platelet rich plasma (PRP), hyaluronic acid (HA) and succinic acid. My aim was to deliver a successful treatment option that tackles both the ageing of the face and the quality of the skin, which I will discuss in this article.

Hyaluronic acid

We know the significance and limitations of injecting HA into the skin. HA is a glycosaminoglycan, a natural substance existing in the body that is made up of disaccharide units. It can recreate some volume and increase the amount of collagen in the dermis through fibroblast stimulation. This ‘revolumisation’ also promotes water retention at various levels, increasing skin turgor and hydration. Unfortunately, these benefits are only short term and HA only temporarily replaces the volume from the continuously disappearing collagen and elastin, but does not re-create it.1

Multiple elements are involved in the ageing of the face, which are not limited to collagen and fibroblast depletion. Fat loss and bone resorption are also a cause of ageing, and in order to tackle this more effectively, we need more than HA.

PRP

PRP is not a volumetric filler but a biological cell therapy that uses the patient’s own platelets and enriched plasma. PRP is defined as a high concentration of the patient’s blood platelets in a small volume of plasma.2 We recognise that PRP enhances cell proliferation over the short term and induces cell differentiation of fibroblast-like cells to myofibroblast-like cells in the long term, suggesting that fibroblast differentiation to myofibroblasts may underline the action mechanism of PRP in soft tissue regeneration. PRP also aims to stimulate the osteoblasts, therefore having a positive effect upon the bone resorption. Moreover, the different growth factors contained in PRP (explained below) will also aim to generate a transitory neo-vascularisation.2

As we age, there is a natural accumulation of free radicals both in and under the skin, which will result in a deterioration of the colour and texture of facial skin

Platelets contain a variety of small molecules, also known as growth factors or cytokines, which interact with local cells and even send signals that initiate a variety of important events, such as cell division and migration.2 The growth factors promote tissue healing and bio-cellular regeneration, and were discovered in 1953. In 1986, Italian developmental biologist Rita Levi- Montalcini and American biochemist Stanley Cohen won a Nobel prize for demonstrating how the growth and differentiation of a nerve growth factor and epidermal growth factor is regulated.3

Now we know of more than 30 different growth factors, but the most important ones for aesthetic rejuvenation are:

Platelet Derived Growth Factor (PDGF-AA, PDGF-BB, PDGF-AB)

Characteristics:2

  • Chemoattractive to mesenchymal stem cells and endothelial cells (meaning that it will recruit immune cells into the damaged tissue)
  • Differentiates between fibroblasts and osteoblasts
  • Up-regulates effects of other growth factors on cells such as macrophages
  • Promotes the synthesis of the extra cellular matrix through mitogenes of mesenchymal stem cells

Transforming Growth Factor Beta (TGF beta 1, TGF beta 2)

Characteristics:5,6

  • Promotes cell mitosis
  • Improves the synthesis of collagen
  • Has a sheath fibroblast
  • Stimulates the DNA synthesis, proliferates various types of cells

Vascular Endothelial Growth Factor (VEGF)7

  • Characteristics:
  • Stimulates angiogenesis
  • Chemoattractive for osteoblast

Epidermal Growth Factor (EGF)8

Characteristics:

  • Plays an important role in the regulation of cell growth, proliferation, and differentiation by binding to its receptor EGFR
  • Induces epithelial development and promotes angiogenesis
  • Stimulates proliferation and differentiation of epidermis cells, co-stimulating angiogenesis

PRP-combination studies

In 2016, a study published in the Journal of Cosmetic Dermatology looked at varying degrees of facial ageing signs in 94 female patients, who were treated with PRP and HA. The combination was injected into the deep dermis and hypodermis.9 Patients were asked to rate their personal satisfaction with their skin texture, pigmentation, and sagging. In addition, the overall results were rated by three independent physicians and the patients themselves. The outcomes were peer-reviewed and correlations between the degree of the aesthetic scores and the number of injections were explored. Compared to the baseline, the PRP and HA injections provided clinically visible improvement on facial skin.

Also of interest is the publication by Liu Yawei et al that studied the influence of PRP lysates on fibroblast proliferation. Cells were exposed to platelet lysates that had been pre-incubated at pH levels 5.0, 7.1 and 7.6. Platelets pre-incubated in an acidic environment of pH 5.0 induced the highest degree of fibroblast proliferation, indicating that a low pH can stimulate fibroblast proliferation, which supports the concept of mixing PRP with a low pH acid HA.10

Sodium succinate

Although studies such as the ones above have indicated that mixing PRP and HA offers a satisfactory treatment for skin ageing, there is another factor to take into consideration.11 As we age, there is a natural accumulation of free radicals both in and under the skin, which will result in a deterioration of the colour and texture of facial skin, causing premature ageing by damaging the cells and their DNA.12

There is research that investigates skin pigmentation treatment from a chemical point of view.13 These findings point towards succinic acid as a possible treatment. As succinic acid is a dicarboxylic acid with metal-chelating potential and a particular affinity to copper, it was suggested that it also could reduce pigmentation by acting on the enzyme, tyrosinase, which controls the production of melanin.14,15

Succinic acid – which has the same action as ascorbic acid –will decrease the intensity of the melanin colour from the oxidised state (black), and in the reduced state (brown)

Copper has a vital role in the activity of this enzyme and the chelation of the copper in the tyrosinase will aim to effectively block the enzyme activity, therefore engineering complete enzyme function loss and restricting the production of melanin and, thus, the development of pigmentation.26

As succinic acid is a weak acid (only partly ionised) it also has an antioxidant action; this was demonstrated in an experiment on Wistar rats,18 where the succinate was able to modulate the intensity of the antioxidant effects. When sodium succinate is introduced into the dermis, it releases succinic acid, which, as demonstrated in the study, will develop its antioxidant activity.

The mechanism is an inhibition of the free oxygen radicals (melanic effect), and of the oxidising action of the tyrosinase (needed for the processing of the tyrosine and then dopamine).19 Succinic acid – which has the same action as ascorbic acid –will decrease the intensity of the melanin colour from the oxidised state (black), and in the reduced state (brown).20

Dr Reza Mia conducted an in vitro trial combining HA and sodium succinate. He suggested that, when combined, they act synergistically to stimulate fibroblast cells in both number and metabolic activity. The result was greater when compared to HA mono-component therapy.21 He concluded, “The effect on the metabolic processes can include strengthening cellular respiration, normalising ion transport, increasing protein synthesis and increasing energy production, through the stimulation of the Krebs cycle in mitochondria.”21

Cellular respiration takes place in the mitochondria through the Krebs cycle. This is where and when pyruvate is transformed from glycolysis to produce nicotinamide adenine dinucleotide (NADH) and adenosine triphosphate (ATP), which requires a succession of reactions and intermediate molecules. Succinate is one such molecule forming the complete chain in the cycle.23,24

The result of the Krebs cycle is the restoration of a cell’s function, improvement in skin elasticity, firmness and tightness, improvement in colour and texture and also a diminution of skin-ageing signs.

Combining the three

The ageing of the face is a result of a combination of different factors and therefore requires a combination of ‘tools’, summarised below:

For dehydration and volume loss: As the main goal of HA is to increase the collagen amount and density in the skin, thereby increasing hydration and volume, it is logical to use this as a scaffolding.

For deceleration of the metabolism: Succinic acid aims to stimulate the Krebs cycle and its use should reverse this deceleration and improve both the fibroblasts and their metabolic processes, as well as fighting pigmentation.21

Slowing down or stopping bone resorption: One of the major roles of PRP is to slow down or stop bone resorption on the eye sockets and mandibular line, while stimulating the collagen formation. It also aims to improve the muscle tone and vascularisation.2

Case study protocol

In my study (February 2017), a group of 14 patients were recruited. The patients were female, aged 35 to 65, not pregnant, not breastfeeding and not having any other treatment for skin pigmentation or skin improvement during the time of the study.

The two projected aims were as follows:

1. That PRP would improve the dermal-epidermal layer of the skin and collagen formation due to the growth factors present in the plasma.

2. That hyaluronic acid associated with succinic acid (stimulation of the Krebs cycle) would also improve the collagen, with an added action to treat the skin pigmentation and elasticity.

The patients were treated on the right side of the face with 5ml of PRP. On the left side of the face the same patients had the combination treatment of 3ml of PRP and 2ml of a 1.1% combination of HA and succinic acid (Xela Rederm) mixed together via a two-way connector (a small tube with one hole at each end, allowing to fix a syringe at each end, in order to mix both contents). The trial treatment consisted of one treatment session only, with PRP alone and PRP mixed injections (with HA and succinic acid) using a 30G needle, spread evenly following my protocol (for both sides of the face):

  • First, the products are injected deep, in contact with the periosteum under the eyes, to improve the eye socket and the under-eye pigmentation, then along the jawline and into the nasolabial folds to stimulate the osteoblasts.
  • The products are then injected intramuscularly into the cheeks, crow’s feet, glabella and platysma bands. Then, more superficially subdermally, in the style of mesotherapy.
  • Finally, the remaining product is rubbed into the skin through the microinjection points using the glove (not gauze).

The entire group was evaluated before treatment, two weeks later, and again four weeks later. Patient consent forms were recorded, as well as the following:

  • Photographs were taken under normal, UV and polarised light, always in the same position and exposure to produce objective results.
  • Analysis of collagen, hydration, pigmentation, elasticity and erythema were performed with a skin analysis machine above the temporal area and the zygomatic area on the right and left side (at each point three measurements were taken, to create an average). The measurements were taken by the same technician, in the same room, with the same conditions to offer additional objective results.
  • Patients were asked what they thought of their skin improvement and to rate it on a scale from 1 to 10 (10 being the best) to provide subjective results.

Risks and complications

As PRP is an autologous product, there is no known risk of allergy, lumps, granuloma or asymmetrical results. Moreover, PRP is bactericidal, which decreases the risk of infection.25

As with any injection, patients taking any type of medication that could increase bleeding (e.g. anti-coagulants, aspirin, omega 3, evening primrose oil) should take extra precautions and be made aware of the risk. Patients with known sensitivity or allergy to HA or succinic acid should be tested before using the product.

Results

On the subjective patient appreciation scale, when asked (in private) to note their skin condition and improvement, all 14 patients gave a firm positive answer, noting the amelioration of their skin one week post treatment. On a scale from 0 to 10, they all graded the treatment at ‘8’ on how happy they were with the condition and improvement of their skin, and some also mentioned receiving favourable comments from friends or family, while others volunteered to write testimonials.

In regards to the pictures taken, we noted that there was a clear diminution of the pigmentation, a fuller face aspect, and a definite healthier look. Under UV light the pigmentation improvement was even more obvious.

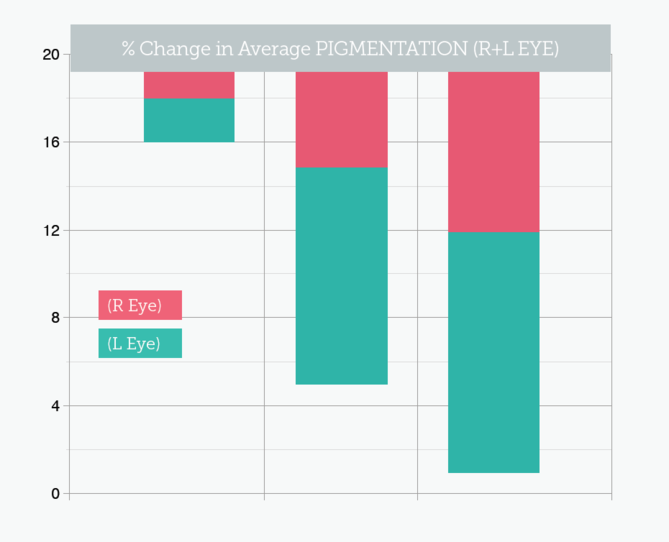

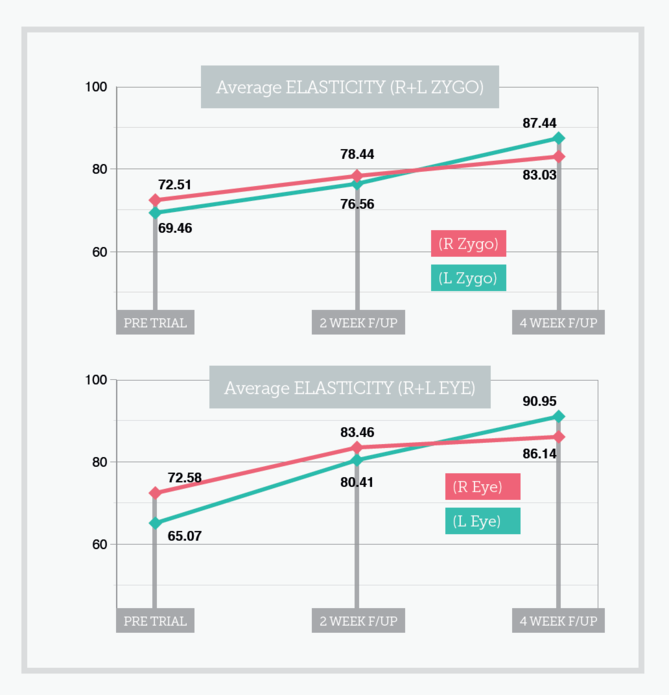

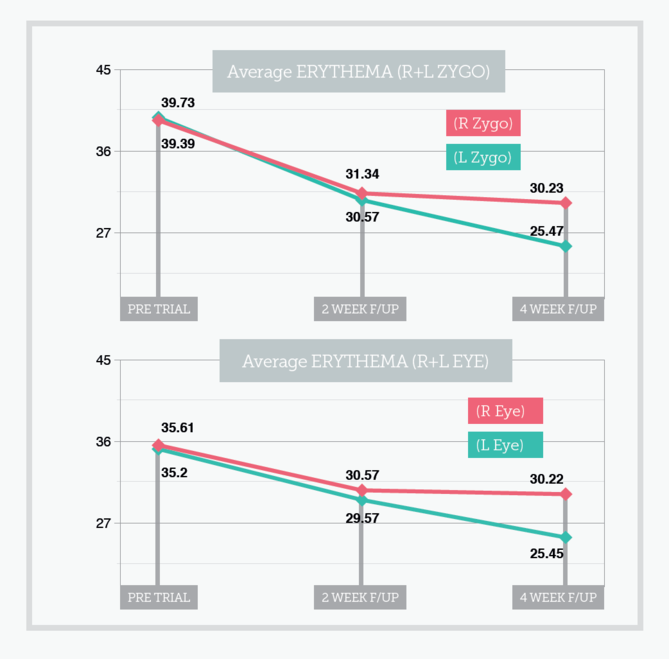

However, even more obvious are the objective results. Below are the average of three measurements on two different points (zygomatic and eye areas) both on the right side (PRP alone) and left side (PRP, HA and succinic acid) (Figure 1).

The first conclusion of the study is that PRP alone, when injected correctly (deep/medium deep/sub dermal) does objectively improve the skin on all parameters (elasticity, hydration, pigmentation and erythema).

The second point is that it works much faster than was previously thought; starting one week after treatment and continuously improving during the whole month and thereafter. Finally, it is apparent that the addition of HA and succinic acid to the PRP generates an even greater improvement, which, in my opinion, validates the concept of mixing the products. All patients’ photos on individual measurements are on file. All treatments were well tolerated and no side effects were reported.

Figure 2: Patient 1 before treatment (day 0), after first treatment (day 14) and after second treatment (day 20). Redness is significantly reduced leaving a more even complexion. It should be noted that the patient went for a one week vacation without using correct sun screen just after the first treatment – the excess of pigmentation shown in image 1 cleared without any other treatment right after.

Figure 3: Patient 2 before treatment (day 0), after first treatment (day 14) and after second treatment (day 20).

Figure 4: Patient 3 before treatment (day 0), after first treatment (day 14) and after second treatment (day 20). Note the skin is more plump and healthier in appearance.

Conclusion

Our patients are always seeking new treatments that maximise results whilst minimising both cost and the number of treatments required. From a practitioners’ perspective we often treat using a range of products in order to provide synergistic effects. Patients can have a number of different requirements from a treatment, therefore, those treatments that address more than one concern are increasingly popular. The addition of succinic acid to a HA filler, which is then mixed with plasma, delivers a new and valuable treatment which targets multiple signs of ageing on the face, whist minimising the number of injections required.

In the future I intend to perform further research on the effects of combining PRP with HA and succinic acid on the treatment of scars.

References

  1. Ramos-Torrecillas J, Luna-Bertos Ed, Manzano-Moreno FJ, García-Martínez O, Ruiz C, Human fibroblast-like cultures in the presence of platelet-rich plasma as a single growth factor source: clinical implications.
  2. Angela M. Duffy, David J. Bouchier-Hayes, & Judith H. Harmey, Vascular Endothelial Growth Factor (VEGF) and Its Role in Non-Endothelial Cells: Autocrine Signalling by VEGF, Madame Curie Bioscience Database, (2017) <https://www.ncbi.nlm.nih.gov/books/NBK6482/>
  3. Nobel prize, The Nobel Prize in Physiology or Medicine 1986, (2017) <http://www.nobelprize.org/ nobel_prizes/medicine/laureates/1986/press.html>
  4. T F Deuel & J S Huang, Platelet-derived growth factor. Structure, function, and roles in normal and transformed cells, J Clin Invest (1984) <https://www.ncbi.nlm.nih.gov/pmc/articles/PMC425220/>
  5. UniProt, UniProtKB - P61812 (TGFB2_HUMAN) (2017) http://www.uniprot.org/uniprot/P61812
  6. UniProt, UniProtKB - P01137 (TGFB1_HUMAN) (2017) <http://www.uniprot.org/uniprot/P01137
  7. Angela M. Duffy, David J. Bouchier-Hayes, & Judith H. Harmey, Vascular Endothelial Growth Factor (VEGF) and Its Role in Non-Endothelial Cells: Autocrine Signalling by VEGF, Madame Curie Bioscience Database, (2017)
  8. Sandra A. Carson, Robin Chase M.S, Elena Ulep B.S, Antonio Scommegna, Robert Benveniste, Ontogenesis and characteristics of epidermal growth factor receptors in human placenta, American Journal of Obstetrics and Gynecology <http://www.sciencedirect.com/science/article/ pii/0002937883902491>
  9. Betul Gozel Ulusal, Platelet-rich plasma and hyaluronic acid - an efficient bio stimulation method for face rejuvenation, Journal of Cosmetic Dermatology, sept 5 (2016) vol 6, issue 1, 112-119
  10. Yawei Liu, Anders Kalen, Olof Risto and Ola Wahlstrom, Fibroblast proliferation due to exposure to a platelet concentrate in vitro is pH dependent, Wound Rep Reg (2002): 10: 336-340
  11. Berezoskiy, V.A, et al, ‘Connected to the question of human skin physiological renovation,’ The Ukrainian magazine of dermatology, venereology & cosmetology, 3(2011).
  12. Zarubina, Lukk, Shabarov: Antihypoxic and antioxidant effects of exogenous succinic acid and aminothiol succinate containing antihypoxants. Bull. Exp. Bio. Med. 2012: 153(3) 336-9
  13. Domingoa jl, Gómeza M, Llobeta JM, Corbellab J. Citric, malic and succinic acids as possible alternatives to deferoxamine in aluminum toxicity. Journal of Toxicology: Clinical Toxicology 1988; 26(1-2)
  14. Olivarez G, Solano F, Garcia Barron JC: conformation dependant post translational glycosylation of tyrosinase. Journal of Biological Chemistry 2003. 278. 15735-15743
  15. Uchidaa R, Ishikawaa S, Tomodaa H: Inhibition of tyrosinase activity and melanin pigmentation. Acta Pharmaceutica Sinica B2014-4 (2) 141-145
  16. Cohen BE, Elbuluk N. Microneedling in skin of color: A review of uses and efficacy. J Am Acad Dermatol 2016; 74(2): 348–55
  17. Tsepkolenko V, Medvedeva I. Redermalization: Results and Prospects. Les nouvelles esthetiques 2010; 5 (63)
  18. Antihypoxic and Antioxidant Effects of Exogenous Succinic Acid and Aminothiol Succinate-Containing Antihypoxants. IV Zarubina et al Bull Exp Biol Med 153 (3), 336-339. 7 2012.
  19. Olivarez G, Solano F, Garcia Barron JC: conformation dependant post translational glycosylation of tyrosinase. Journal of Biological Chemistry 2003. 278. 15735-15743
  20. Uchidaa R, Ishikawaa S, Tomodaa H: Inhibition of tyrosinase activity and melanin pigmentation. Acta Pharmaceutica Sinica B2014-4 (2) 141-145
  21. Dr Reza Mia, Combining HA with Sodium Succinate, Aesthetics journal, (2016)
  22. Holt, Z. (2012) ‘Krebs Cycle Broken Down’, <http://understandingbiologyandlife.blogspot. co.za/2012/12/krebs-cycle-broken-down.html>
  23. Chemisty for Biologists, Royal Society of Chemists (2017) <http://www.rsc.org/Education/Teachers/ Resources/cfb/respiration.htm>
  24. Liskina I.V. et al., ‘Comparative Clinical-morphological research of the effects made on skin by hyaluronic acid containing substances’, The Ukranian Magazine of Dermatology, Venerology & Cosmetology, 2(2010)
  25. Lorenzo Drago, Monica Bortolin, Christian Vassena, Silvio Taschieri and Massimo Del Fabbro, Antimicrobial activity of pure platelet-rich plasma against microorganisms isolated from oral cavity, BMC Micrbiology, (2013) http://bmcmicrobiol.biomedcentral.com/articles/10.1186/1471-2180-13-47
  26. Chen Z, Mayer LM, Weston DP, Bock MJ, Jumars PA, Inhibition of digestive enzyme activities by copper in the guts of various marine benthic invertebrates, Environ Toxicol Chem, (2002) <https:// www.ncbi.nlm.nih.gov/pubmed/12069309>
